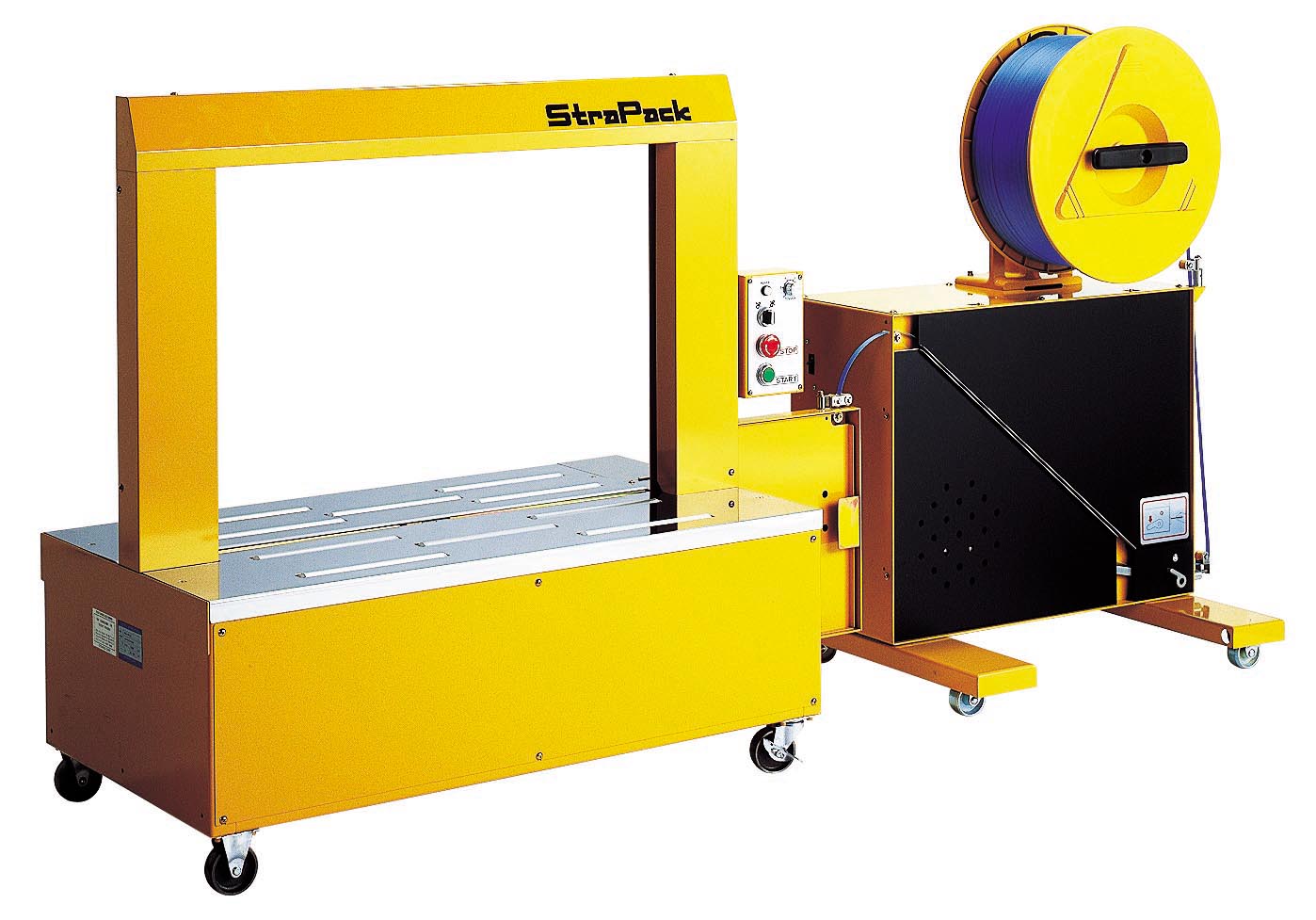

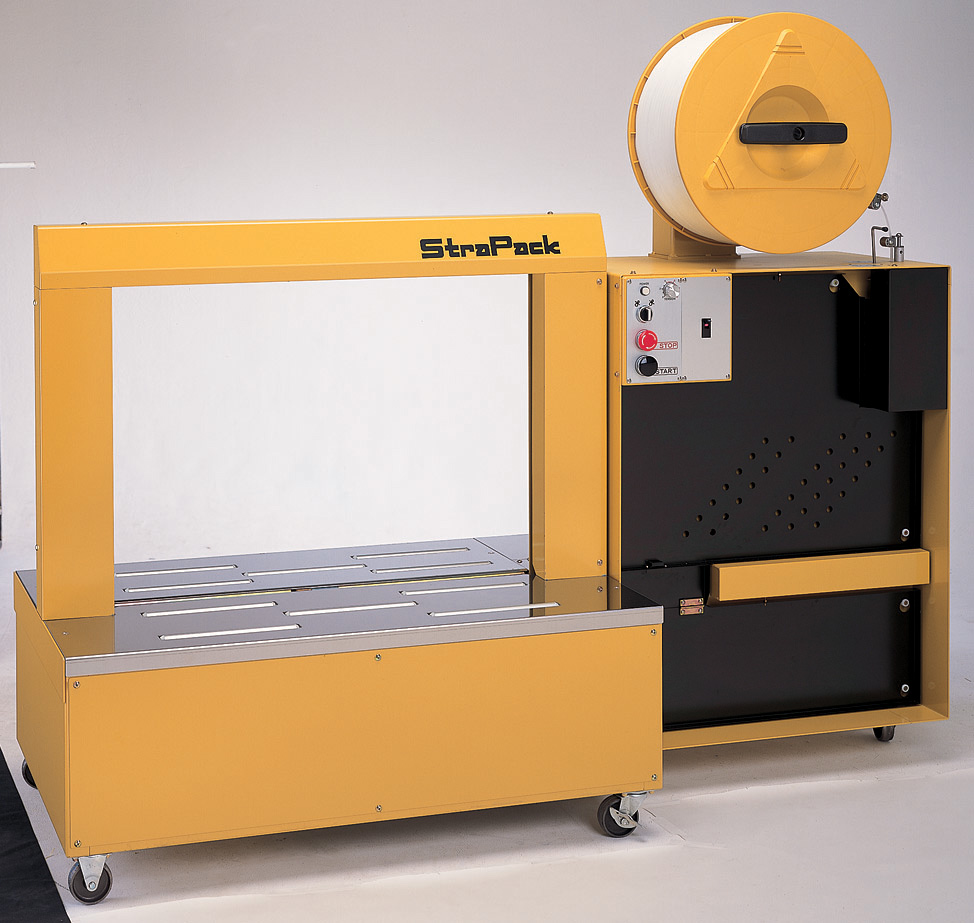

RQ-8LD/LS
Low-Table Type
Strap Size | 5/6/9/12/15 |
---|---|
Arch Size | (W)850 X (H)600 |
Electricity | 1PH/3PH, 220V/380V, 50Hz/60Hz |
Dimensions (Wide x Deep x High) |
(W)1,863 x (D)609 x (H)1,547 / (W)2,161 x (D)609 x (H)1,141 |
Table Height | (H)432 |
Product Information
Product Information
When your applications require a low conveyor height and a bottom seal strapping machine, the RQ-8 low table models are the perfect machines. With a cabinet height of only 432mm , the RQ-8L is unique. Unlike side-seal machines, the package does not have to be shifted against the sealing head. Products longer than approx. 914mm or 36″ can be strapped automatically by interlocking a standard RQ-8L to adjacent powered conveyor. For shorter packages, the RQ-8L can be built with the powered belt table tops and automation features of the RQ-8A series.
